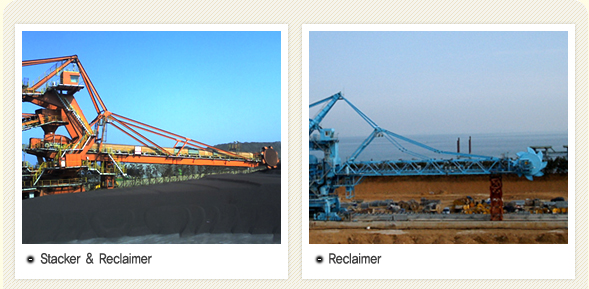

Stacker & Reclamer 관련
PDF READER DOWNLOAD

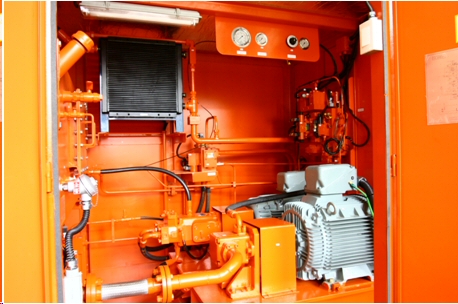

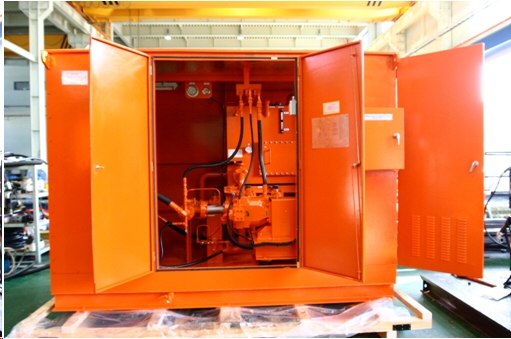

* ST/RE 용 유압
유니트 표준 제품
|
Model
(유압장치
모델)
|
SPECIFICATION
(
사 양 )
|
APPLICATION
(적용
장치)
|
|
HS-RDSH-0401
|
Working
pressure : 190K
Working
flow
DERRICK
: 99.74LPM
SLEWING
: 101LPM at 147K
Main Power
: 440V, 60Hz
Control
Power : 110VAC, 60Hz
Motor 45KW
1ea
WxDxH 2400(+600)x1700x1800
|
Boom
Luffing&Slewing
PDF
DRAWING
|
|
HS-RDSH-0402
|
Working
pressure : 190K
Working
flow
DERRICK
: 99.74LPM
SLEWING
: 101LPM at 147K
Main Power
: 440V, 60Hz
Control
Power : 110VAC, 60Hz
Motor 45KW
1ea
WxDxH 2100(+600)x1700x1800(or2000)
|
Boom
Luffing&Slewing
PDF
DRAWING
|
|
HS-RBH-0501
|
Working
pressure : 180
Working
flow : 600LPM
Main Power
: 440V
Control
power : 110VAC
Motor 150KW
1ea
WxDxH 3850(+200)x2100X2000
|
Bucket
Wheel
PDF
DRAWING
|
|
HS-SDSH-0601
|
Working
pressure : 190K
Working
flow Max.
DERRICK
: 126LPM
SLEWING
: 51LPM at 147K
Main Power
: 440V, 60Hz
Control
Power : 110VAC, 60Hz
Motor 45KW
1ea
WxDxH 2400x2200x2000
|
Boom
Luffing&Slewing
(ex.
Stacker)
|
|
HS-SDSH-0602
|
Working
pressure : 190K
Working
flow
DERRICK
: 67.5LPM
SLEWING
: 51LPM at 147K
Main Power
: 440V, 60Hz
Control
Power : 110VAC, 60Hz
Motor 22KW
1ea
WxDxH 2100x1700x2000
|
Boom
Luffing&Slewing
(ex.
Stacker)
|
|
HS-SDSH-0603
|
Working
pressure : 190K
Working
flow
DERRICK
: 37.5LPM
SLEWING
: 51LPM at 147K
Main Power
: 440V, 60Hz
Control
Power : 110VAC, 60Hz
Motor 22KW
1ea
WxDxH 2100x1700x2000
|
Boom
Luffing&Slewing
(ex.
Stacker)
|
* ST/RE
용 유압 실린더 표준 제품
|
Model
(실린더모델)
|
SPECIFICATION
(
사 양 )
|
APPLICATION
(적용
장치)
|
|
HS-SRC-0401
|
￠480x￠340x1750ST
RATING
PRESSURE : 170K
PROOF PRESSURE
: 225K
PULLING
40TON
PUSHING
300TON
|
BOOM
LUFFING
PDF
DRAWING
|
|
HS-SRC-0402
|
CA315/224-1860ST
|
BOOM
LUFFING
|
|
HS-SRC-0403
|
CA315.224-1690ST
|
BOOM
LUFFING
|
|
HS-SRC-0404
|
CA250/180-1558ST
|
BOOM
LUFFING
|
|
HS-SRC-0405
|
CA250/180-1594ST
|
BOOM
LUFFING
|
|
HS-SRC-0406
|
CA400/280-1733ST
|
BOOM
LUFFING
|
|
HS-SRC-0406
|
CA400/280-1624ST
|
BOOM
LUFFING
|
|
HS-SRC-0407
|
CA250/180-1680ST
|
BOOM
LUFFING
|
|
HS-SRC-0408
|
CA250/180-1550ST
|
BOOM
LUFFING
|
|
HS-SRC-0409
|
CA400/280-1900ST
|
BOOM
LUFFING
|
|
|
|
|
*
Boom Slewing & Derrickinng
*

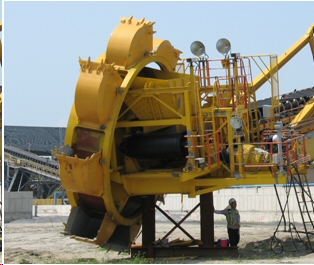

Bucket Wheel
*
돔형 원료 야적장용 하로우 및 붐 러핑 크레인용 유압
CSU 관련

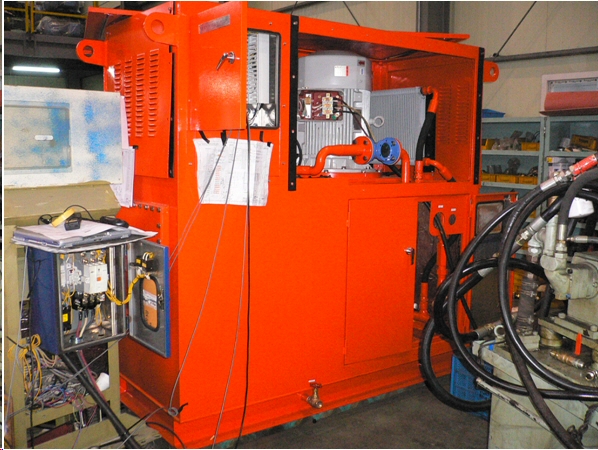

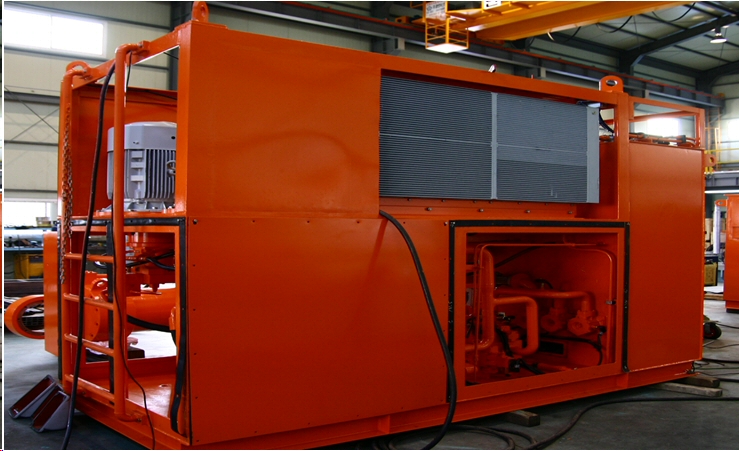

* CSU용 유압
유니트 표준 제품
|
Model
(유압장치
모델)
|
SPECIFICATION
(
사 양 )
|
APPLICATION
(적용
장치)
|
|
HS-CSH-1401
|
Working
pressure : 250K
Working
flow Max.:1400LPM
Main Power
: 440V, 60Hz
Control
Power : 110VAC, 60Hz
Motor 132KW+Pump360cc/rev
: 2ea
WxDxH 4500x2200x3300
|
Boom
Luffing
(ex. 3000T/H
CSU)
|
|
HS-CSH-1402
|
Working
pressure : 265K
Working
flow Max.:1350LPM
Main Power
: 440V, 60Hz
Control
Power : 110VAC, 60Hz
Motor 132KW+Pump360cc/rev
: 2ea
Motor 37KW+Pump80cc/rev
: 1ea
WxDxH 4800x2185x3200
|
Boom
Luffing
(ex. 3000T/H
CSU)
|
|
HS-CSH-1411
|
Woring
pressure max. : 170K
Working
flow max. : 150LPM
Main power
: 440V, 60Hz
Control
power : 110VAC, 60Hz
Motor 45KW+Pump80cc/rev
: 2ea
WxDxH 2750x1050x2250
|
Swing&Telescopic
|
|
|
|
|
* CSU용 유압
실린더 표준 제품
|
Model
(실린더모델)
|
SPECIFICATION
(
사 양 )
|
APPLICATION
(적용
장치)
|
|
HS-CLC-2401
|
TC400/200-3170ST
MAX. WORKING
PRESSURE : 250K
PROOF PRESSURE
: 350K
ROD HARD
Cr. PLATED
|
BOOM
LUFFING
|
|
HS-CLC-2402
|
￠600x￠300X5950ST
ROD SIDE
WORKING PRESSURE
:
250K (PULLING 492TON)
HEAD SIDE
WORKING PRESSURE
:
120K (PUSHING 311TON)
PROOF PRESSURE
: 375K(ROD)
200K(HEAD)
ROD Ni
+ Hard Cr PLATING
|
BOOM
LUFFING
|
|
HS-CLC-2403
|
￠600x￠320X5400ST
ROD SIDE
WORKING PRESSURE
:
275K (PULLING 554TON)
HEAD SIDE
WORKING PRESSURE
:
120K (PUSHING 264TON)
PROOF PRESSURE
: 390K(ROD)
200K(HEAD)
ROD Ni
+ Hard Cr PLATING
|
BOOM
LUFFING
|
|
HS-CLC-2404
|
￠700x￠360X5870ST
ROD SIDE
WORKING PRESSURE
:
268K (PULLING 758.6TON)
HEAD SIDE
WORKING PRESSURE
:
120K (PUSHING 461.8TON)
PROOF PRESSURE
: 375K(ROD)
200K(HEAD)
ROD Ni
+ Hard Cr PLATING
|
BOOM
LUFFING
|
|
HS-CLC-2405
|
￠850x￠400X3700ST
ROD SIDE
WORKING PRESSURE
:
326K (PULLING 12,000KN)
HEAD SIDE
WORKING PRESSURE
:
326K (PUSHING 14,400KN)
PROOF PRESSURE
: 408K(ROD)
408K(HEAD)
ROD Ni
+ Hard Cr PLATING
|
BOOM
LUFFING
|
|
HS-CSC-2501
|
￠300x￠140X2000ST
WORKING
PRESSURE : 150K
PROOF PRESSURE
: 300K
TUBE Hard
Cr PLATING
ROD Ni
+ Hard Cr PLATING
|
SWING
|
|
HS-CTC-2601
|
￠160x￠110X1700ST
WORKING
PRESSURE : 210K
PROOF PRESSURE
: 315K
TUBE Hard
Cr PLATING
ROD Ni
+ Hard Cr PLATIN
|
TELESCOPIC
|
|
|
|
|
*
Boom Luffing & Slewing
*
Swing & Telescopic
*
Floating & Telescopic
*

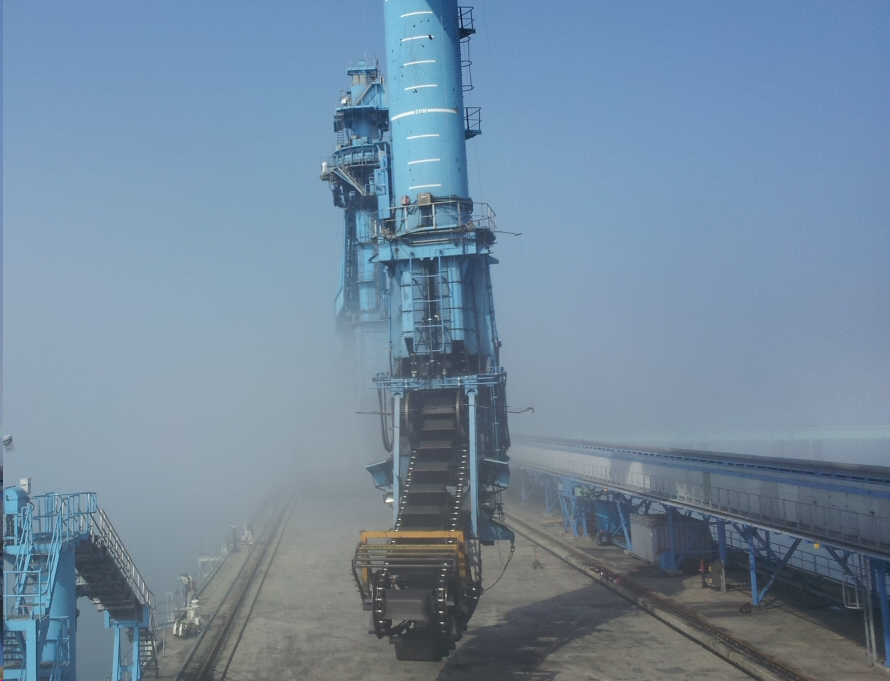

Conveyor Belt & Bucket Elevator
*
주행 파트
*

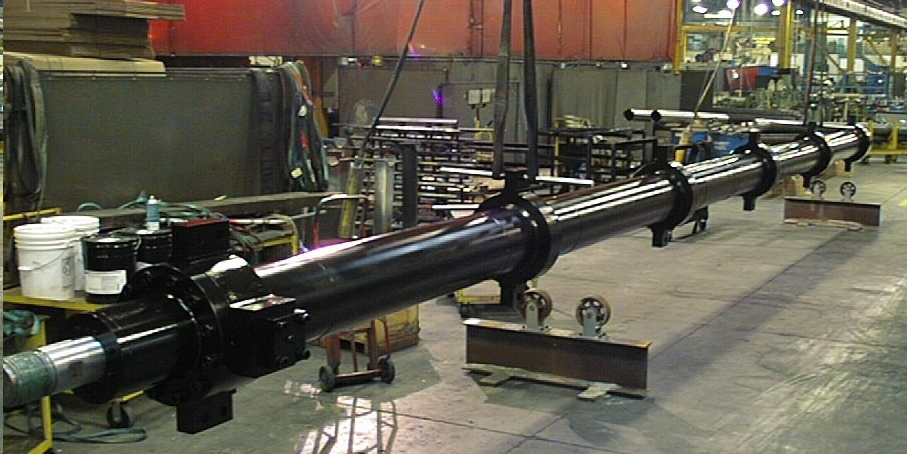

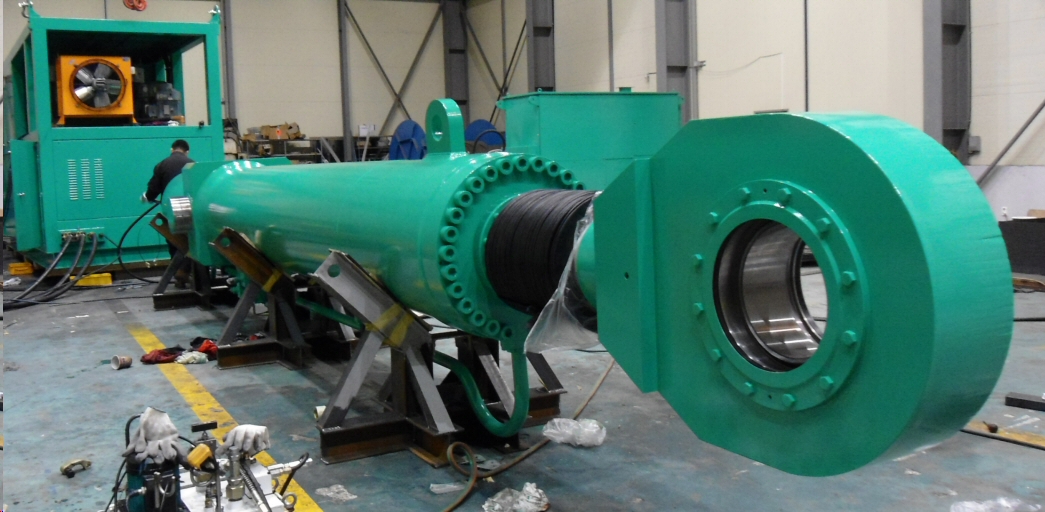

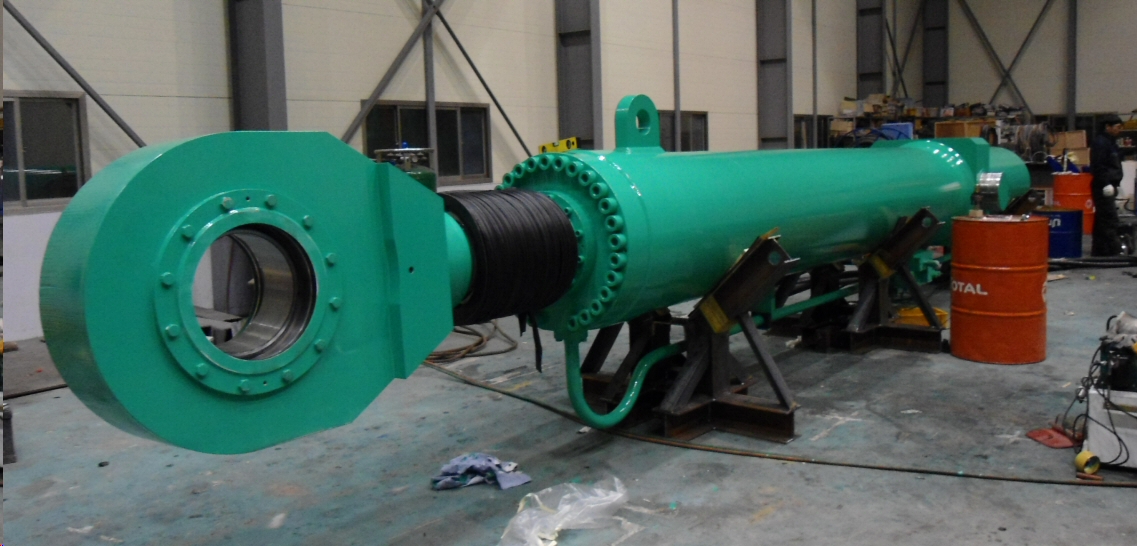

CSU Boom Hoisting Cylinder
-
700/360-5870ST
-
600/300-5950ST
-
600/320-5400ST
상기
사양외 다양한 사이즈 주문제작 가능합니다.

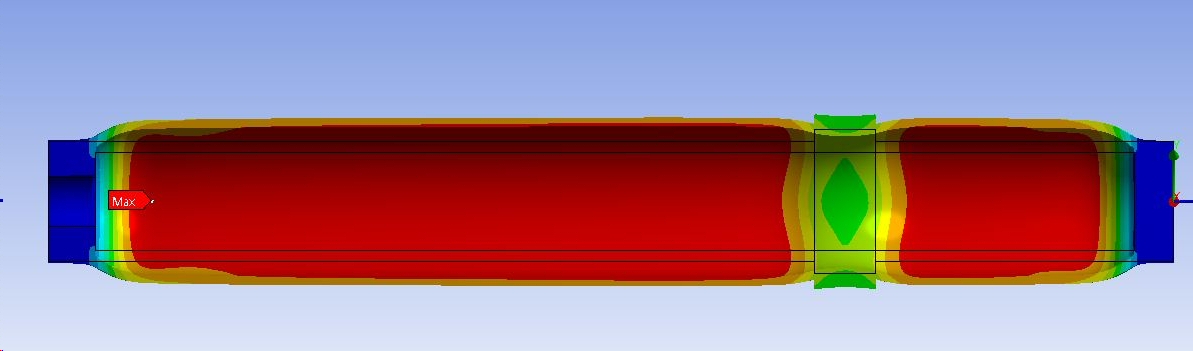

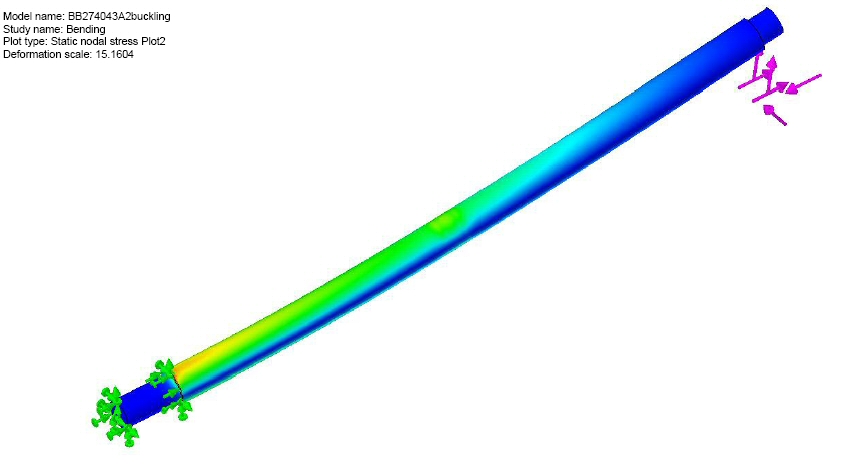

컴퓨터
시뮬레이션을 통한 안전성 검사 및 최적 설계 구현.
|
